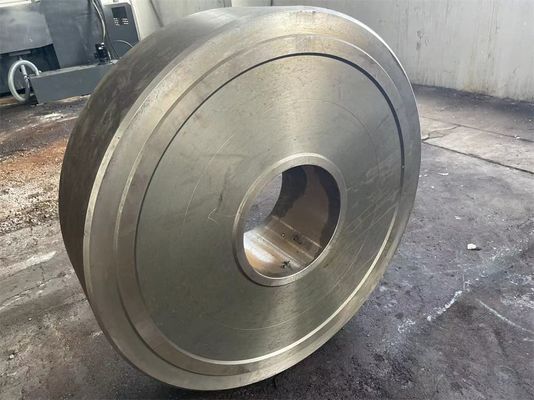

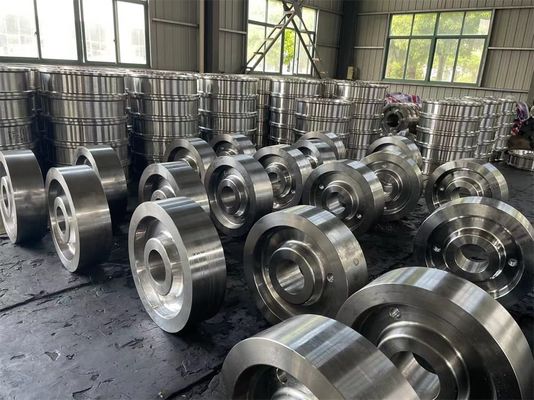

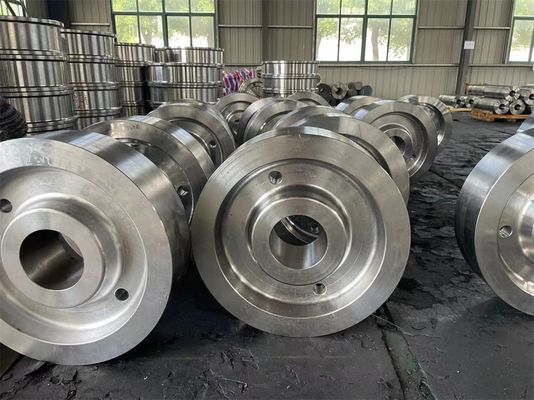

42CrMo Port Machine Forgings Open Die Forged Crane Wheels – ZPMC Supplier. These crane wheels, forged from specialized high-strength alloy steel, are engineered for heavy-duty port gantry and container cranes. With an advanced forging process, they can handle extreme mechanical loads and harsh port environments. Offering 30% longer service life than standard wheels, they cut maintenance costs and ensure stable, continuous operation.
Key Features:
-
Material: 42CrMo
-
Process: Open die forging
-
Heat Treatment:Normalized + Tempered for high hardness and toughness
-
Weight Range: 100–7000 kg
-
Machining: Available as rough or finish-machined
-
Inspection: 100% ultrasonic
Applications:
Advantages:
-
Excellent load-bearing and wear resistance
-
Stable performance under dynamic and cyclic loads
-
Long service life in harsh operating conditions
-
Materials from certified steel mills, full traceability provided
Custom forging solutions available upon request. Contact us with your technical drawings or specifications.
| Item |
Details |
| Product Name |
42CrMo Port Machine Forgings Open Die Forged Crane Wheels – ZPMC Supplier |
| Material Grades |
Alloy Steels: 42CrMo and more |
| Forging Equipment |
- Hydraulic Hammers: 5T, 8T, 12T - Supports large-section open die forging |
| Manufacturing Process |
Forging → Heat Treatment → Rough Machining → Dimensional & NDT Inspection |
| Forging Ratio |
≥ 3.0 — Ensures fine grain refinement, enhanced tensile strength, and excellent internal soundness for heavy-duty operation |
| Applications |
Precision-forged components for: - Gearbox main shafts - Thrust flanges and coupling hubs - Marine transmission and propulsion shafts - Rudder stocks and steering gear drives - Suitable for both marine and industrial mechanical systems |
| Delivery Conditions |
- N+T (Normalized + Tempered): For pre-machined rough parts |
| Testing & Inspection |
- Chemical Analysis: Optical Emission Spectrometry - Mechanical Tests: Tensile , Impact , Hardness - NDT: UT , MT - Dimensional Control: Bore dial indicators, precision micrometers |
| Main Forging service Machine list: |
sets |
| Sample Inspection tester machines in the lab. |
| 1 |
Spectrometer |
1 |
| 2 |
Impact testing machine |
1 |
| 3 |
Tensile testing machine |
1 |
| 4 |
Metallographic microscope |
1 |
| 5 |
Brinell hardness tester |
1 |
| 6 |
Notch projector |
1 |
| 7 |
Quenching test machine |
1 |
| 8 |
high-precision flaw detector |
2 |
| Natural gas equipment |
| 1 |
Natural gas furnace 15Ton |
6 |
| 2 |
Natural gas furnace 20Ton |
1 |
| 3 |
Natural gas furnace 30Ton |
3 |
| 4 |
Natural gas furnace 40Ton |
1 |
| |
Sawing machine |
16 |
| 5 |
5 Ton electro-hydraulic forging hammer |
1 |
| 6 |
8 Ton electro-hydraulic forging hammer |
1 |
| 7 |
12 Ton electro-hydraulic forging hammer |
1 |
| operation machine |
| 8 |
10 Ton loader machine |
1 |
| 9 |
15 Ton loader machine |
1 |
| 10 |
20 Ton Loader machine |
1 |
| Material carrier machine |
| 12 |
10 Ton material carrier |
1 |
| 13 |
20 Ton material carrier |
1 |
| 14 |
Heat Treatment electric furnace 5Ton |
1 |
| 15 |
Heat Treatment electric furnace 15Ton |
1 |
| 16 |
Heat Treatment electric furnace 50Ton |
1 |
| 17 |
Heat Treatment electric furnace 60Ton |
1 |
| 18 |
Heat Treatment electric furnace 60Ton |
1 |
| 19 |
horizontal lathe, vertical lathe,CNC vertical lathe,machining equipment |
31 |
Forging process flow quality control:

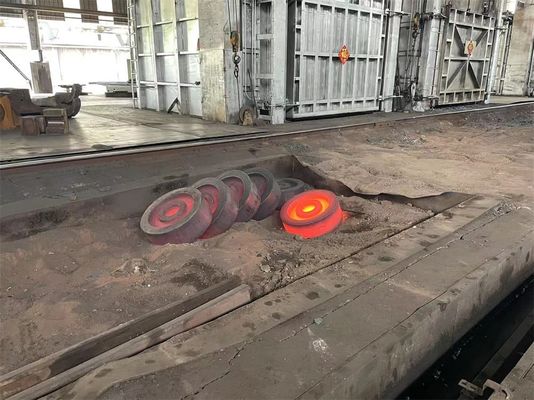

Raw material steel ingot into warehouse(test the chemical composition) → Cutting→ Heating(Furnace temperature test) → Heat treatment after forging(Furnace temperature test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal dimension, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment.
Frequently Asked Questions (FAQs)
1. What is your forging weight range?
We produce forged parts ranging from 100 kg to 7000 kg.
2. Do you provide heat treatment and machining?
Yes, we offer full in-house heat treatment, rough, and finish machining services.
3. Which industries do you supply to?
We serve wind energy, heavy equipment, port machinery, transmission systems, and more.
4. What is your production lead time?
With stock: Around 30 days
Without stock: 40–45 days
5. Where is your factory located?
In Changzhou City, near Shanghai, with shipping via Shanghai Port.
Request a Quote
Please send your technical drawings and requirements to us. Our engineers will review and provide you with a professional quotation and solution shortly.
